Azure Cosmos DB: real-time data movement using Change Feed and Azure Functions

Arjun13 Comments

Many people who read my Cosmos DB articles are looking for an effective way to export data to SQL, either on-demand or in real-time. After performing a search term analysis for my blog earlier this year, I had made up my mind about posting a solid article on exporting data from Cosmos DB to SQL Server.

Note that this serverless and event-based architecture may be used to not only persist Cosmos DB changes to SQL Server, but trigger alternate actions such as stream processing or loading to blob/Data Lake.


Real-time ETL using Cosmos DB Change Feed and Azure Functions

In this article, we will focus on creating a data pipeline to ETL (Extract, Transform and Load) Cosmos DB container changes to a SQL Server database. My main requirements or design considerations are:

  • Fault-tolerant and near real-time processing
  • Incur minimum additional cost
  • Simple to implement and maintain

Cosmos DB Change Feed

Cosmos DB Change Feed listens to Cosmos DB containers for changes and outputs the list of items that were changed in the chronological order of their modification. Cosmos DB Change Feed enables building efficient and scalable solutions for the following use cases:

  • Triggering a notification or calling an API
  • Real-time stream processing
  • Downstream data movement or archiving

AzureCosmosDBChangeFeedOverview

Types of operations

  • Change feed tracks inserts and updates. Deletes are not tracked yet
  • Cannot control change feed to track only one kind of operation, for example only inserts
  • For tracking deletes in the Change Feed, workaround is to soft-delete and assign a small TTL (Time To Live) value of “n” to automatically delete the item after “n” seconds
  • Change Feed can be read for historic items, as long as the items have not been deleted
  • Change Feed items are available in order of their modification time (_ts system attribute), per logical partition key, and tagged with the same _lsn (system attribute) value for all items modified in the same transaction

Read more about Azure Cosmos DB Change Feed from Microsoft docs to gain a thorough understanding. Change Feed can be processed using Azure Functions or Change Feed Processor Library. In this article, we will use Azure Functions.

Azure Functions

Azure Functions is an event-driven, serverless compute platform for easily running small pieces of code in Azure. Key points to note are:

  • Write specific code for a problem without worrying about an application or the infrastructure to run it
  • Use either C#, F#, Node.js, Java, or PHP for coding
  • Pay only for the time your code runs and trust Azure to scale
  • As of July 2019, the Azure Functions trigger for Cosmos DB is supported for use with the Core (SQL) API only

Read more from Microsoft docs to understand full capabilities of Azure Functions.

If you use Consumption plan pricing, it includes a monthly free grant of 1 million requests and 400,000 GBs of resource consumption per month per subscription in pay-as-you-go pricing across all function apps in that subscription, as per MS docs.

Compare hosting plans and check out pricing details for Azure Functions at the Functions pricing page to gain a thorough understanding of pricing options.

Real-time data movement using Change Feed and Azure Functions

The following architecture will allow us to listen to a Cosmos DB container for inserts and updates, and copy changes to a SQL Server Table. Note that Change Feed is enabled by default for all Cosmos DB containers.

I will create a Cosmos DB container and add an Azure Function to listen to the Cosmos DB container. I will then modify the Azure Function code to parse modified container items and save them to a SQL Server table.

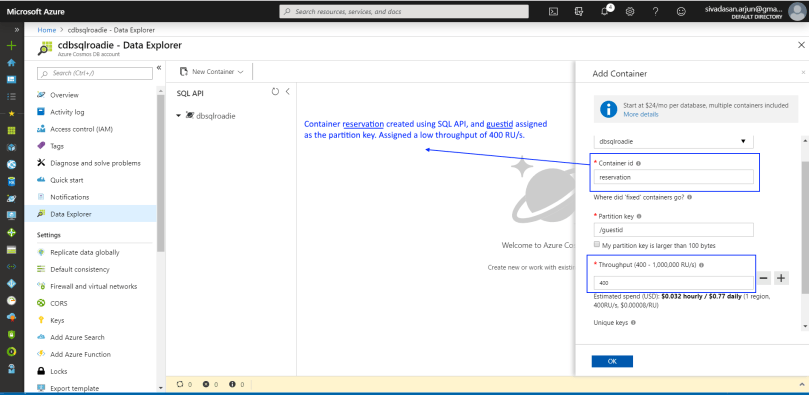

1. First, I navigated to Azure portal, Cosmos DB blade and created a container called reservation in my Cosmos DB database. As it is purely for the purposes of this demo, I assigned lowest throughput of 400 RU/s

01_ContainerCreation02_ContainerCreated

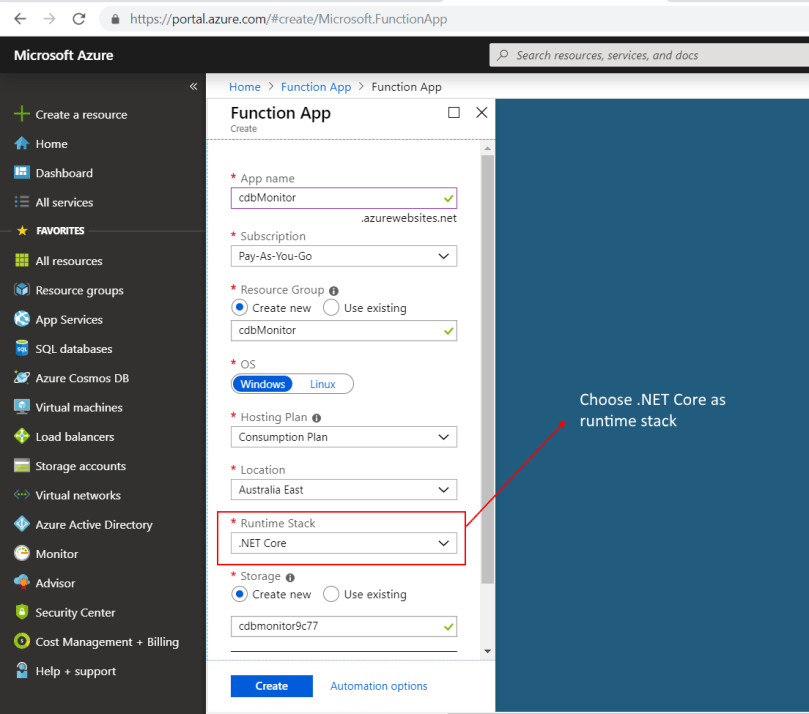

2. Now that the container is ready, proceed to create an Azure Function App. The Azure Function will be hosted in the Azure Function app





3. Add an Azure Function within the newly created Azure Function App. Azure Function trigger for Cosmos DB utilizes the scaling and event-detection functionalities of Change Feed processor, to allow creation of small reactive Azure Functions that will be triggered on each new input to the Cosmos DB container.



06_AddAzureFunction



4. Configure the trigger. Leases container may be manually created. Alternately, check the box that says “Create lease collection if it does not exist”. Please note that you would incur cost for storage and compute for leases container.

07_AzureFunctionConfig

I got this error that read – “The binding type(s) ‘cosmosDBTrigger’ are not registered. You just need to install the relevant extension. I saw many posts about this, so it will most likely be fixed soon.


Sort out the error by installing the extension for Azure Cosmos DB trigger.

09_AzureCosmosDBTriggerExtensionInstall

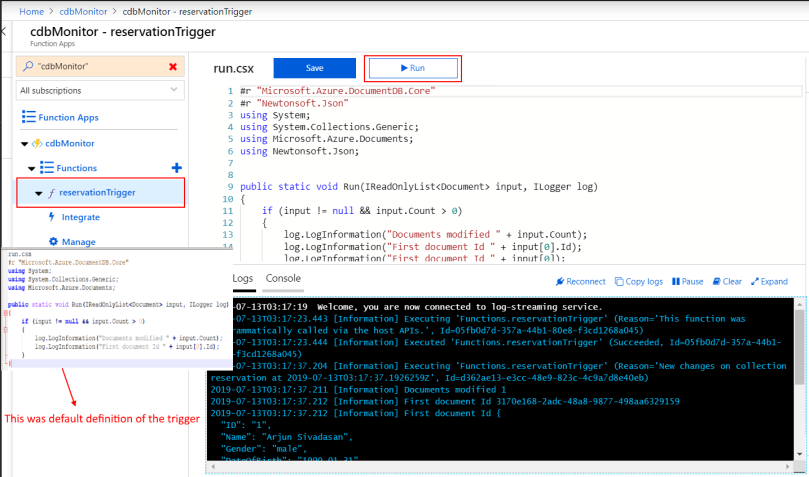

5. Once the function is up and running, add an item to the reservations container that we are monitoring. And we have a working solution!

10_CosmosDBContainer_AddEntries11_AzureFunctionRunning

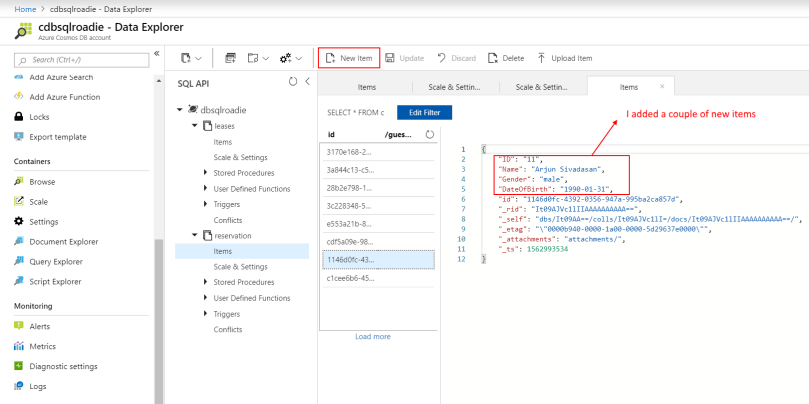

6. Trigger definition may be modified to achieve different things, in our case we will parse the feed output and persist changes to SQL server. You can download the csx file I used.


13_AzureCosmosDBContainer_ModifyItem14_AzureFunction_SavingToDatabase15_SavedInDatabase

Summary

We have successfully implemented a serverless, event-based low cost architecture that is built to scale. Bear in mind that you would still end up paying for Azure Function and the underlying leases collection, but there will be minimum additional RU cost incurred from reading your monitored container(s) as you are tapping into the Change Feed.

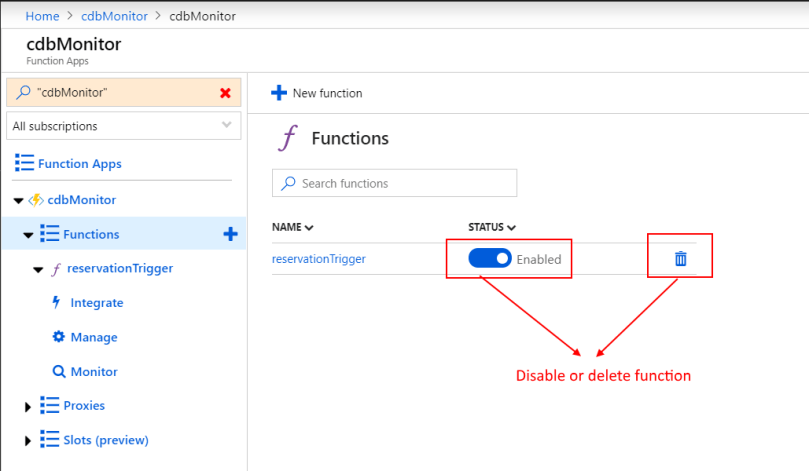

You can monitor the function and troubleshoot errors.

17_Funcion_Control20_Monitor_AzureFunction

I hope you found the article useful. Add a comment if you have feedback for me. If you have any question, drop me a line on LinkedIn. I’ll be happy to help 🙂 Happy coding!

Resources:

https://docs.microsoft.com/en-us/azure/cosmos-db/change-feed
https://docs.microsoft.com/en-us/azure/cosmos-db/changefeed-ecommerce-solution
https://azure.microsoft.com/en-au/services/functions/
https://docs.microsoft.com/en-us/azure/azure-functions/functions-overview
https://docs.microsoft.com/en-us/azure/azure-functions/functions-bindings-cosmosdb-v2
https://docs.microsoft.com/en-us/azure/cosmos-db/change-feed-functions
https://azure.microsoft.com/en-au/resources/videos/azure-cosmosdb-change-feed/
https://h-savran.blogspot.com/2019/03/introduction-to-change-feed-in-cosmos.html

Export data from Cosmos DB to SQL Server

Arjun18 Comments

Cosmos DB is Microsoft’s latest NoSQL database offering low latency, high scalability and geo-distribution to any Azure region. Read Microsoft documentation about Cosmos DB here or check out my blog about Introduction to Azure Cosmos DB. In its infancy, Cosmos DB was known as Document DB. Renaming was inevitable as Document DB evolved beyond just a document store.

Following is a simple note on how to export data from Cosmos DB to SQL Server. You may want a dump of data from a Cosmos DB collection to SQL Server for analysis, data integrity checks, troubleshooting a production issue or to derive insights. If you want to set up a real-time data pipeline from Cosmos DB to SQL Server, check out this post: – https://sqlroadie.wordpress.com/2019/07/21/azure-cosmos-db-real-time-data-movement-using-change-feed-and-azure-functions/

There are a few methods to export data from Cosmos DB. The quickest one is to use Document DB / Cosmos DB Migration Tool. This is a tool provided by Microsoft  to migrate data TO/FROM various sources such as MongoDB, JSON, csv and SQL Server to Cosmos DB.

1. Use Azure Cosmos DB Migration tool to export data to json files:

  • Install the tool and launch as Administrator (use an Azure VM for best performance). Please be mindful of spike in RU costs when exporting data from your collection. To avoid throttling, scale your collection up as required just before you do the export or export in off-peak hours, if any.  Leave a comment if you need any pointer on this.LaunchCosmosDBMigrationTool
  • Choose source – DocumentDB (CosmosDB aka DocumentDB)

CosmosDBMigrationTool-Source

  • Specify connection string. You can find endpoint and key from Keys section of your CosmosDB account in Azure portal. Please note that CosmosDB is case-sensitive.

CosmosDBMigrationTool-ConnectionString

  • A peek into Advanced options
    • Include internal fields – for each document, Cosmos DB maintains a set of auto-generated internal/system fields such as _ts and _self. Their names start with an underscore, making it easy to differentiate them from user fields. This option lets you include internal fields in the output. This is handy, especially the _ts field, which indicates when the document was last updated.
    • Number of retries on failure & Retry interval – Set a reasonable number of retries. In this case, I have used the value 1.
    • Connection Mode – you want to use Gateway to get best performance and to bypass firewall rules.

CosmosDBMigrationTool-AdvancedOptions

  • Specify target information. In this case, we want to export to a json document. We could either output to a local file or a blob.

CosmosDBMigrationTool-TargetInformation

  • Error Logging. Set these options to enable error logging.

CosmosDBMigrationTool-ErrorLogging

Hit Import and if there are no errors, you will soon have a new json file with all the data from your collection. If you want only a subset of data, all you need to do is modify your source query.

2. Import json files to SQL Server:

SQL Server 2016 introduced a JSON parse function called OPENJSON. If none of your user databases are upgraded to 2016 yet, but you have a 2016 engine, context-switch to a system database to use OPENJSON.

DECLARE @productNutrition varchar(max);

--Read from the json file using openrowset
SELECT @productNutrition = BulkColumn
FROM OPENROWSET(BULK'C:\Users\Smruthi\Downloads\Arjun\productnutrition_20180427.json', SINGLE_BLOB) JSON;

--Pass the variable containing json as parameter to OPENJSON function
SELECT *
FROM OPENJSON (@productNutrition)
WITH
(
ProductID varchar(20) '$.id',
ProductDescription varchar(100) '$.description',
ProductGroup varchar(200) '$.foodGroup',
ServingAmount float '$.servings[1].amount',
ServingUnit varchar(10) '$.servings[1].description',
nutrients nvarchar(max) as json --note that json is case sensitive
)

Give it a go yourself. If you have any question, leave a comment and I will be happy to assist.

If you are exploring Cosmos DB, consider reading my blog about Azure Cosmos DB – Partition and Throughput to get an overview of partitioning and scaling concepts.

jsonfileSample

openjson Example
